Service de cache HTTP avec Varnish

# Set this to 1 to make systemd reload try to switch VCL without restart.
RELOAD_VCL=1

# Main configuration file. You probably want to change it.
VARNISH_VCL_CONF=/etc/varnish/default.vcl

# Default address and port to bind to. Blank address means all IPv4
# and IPv6 interfaces, otherwise specify a host name, an IPv4 dotted
# quad, or an IPv6 address in brackets.
# VARNISH_LISTEN_ADDRESS=192.168.1.5

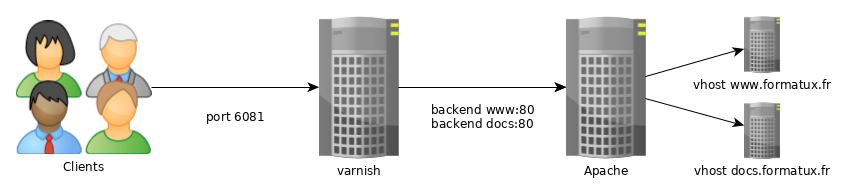

VARNISH_LISTEN_PORT=6081

# Admin interface listen address and port
VARNISH_ADMIN_LISTEN_ADDRESS=127.0.0.1
VARNISH_ADMIN_LISTEN_PORT=6082

# Shared secret file for admin interface
VARNISH_SECRET_FILE=/etc/varnish/secret

# Backend storage specification, see Storage Types in the varnishd(5)
# man page for details.
VARNISH_STORAGE="malloc,256M"

# User and group for the varnishd worker processes
VARNISH_USER=varnish
VARNISH_GROUP=varnish

# Other options, see the man page varnishd(1)
#DAEMON_OPTS="-p thread_pool_min=5 -p thread_pool_max=500 -p thread_pool_timeout=300"

DAEMON_OPTS="-a :6081 \
             -T localhost:6082 \
             -f /etc/varnish/default.vcl \
             -S /etc/varnish/secret \
             -s default,256m"

[Service]
ExecStart=

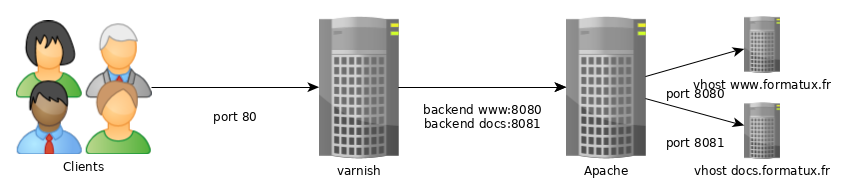

ExecStart=/usr/sbin/varnishd -a :80 -T localhost:6082 -f /etc/varnish/default.vcl -S /etc/varnish/secret -s default,256m

varnishd -C -f /etc/varnish/default.vcl

# /etc/init.d/varnish configtest
[...]
    .hit_func = VGC_function_vcl_hit,
    .init_func = VGC_function_vcl_init,
    .miss_func = VGC_function_vcl_miss,
    .pass_func = VGC_function_vcl_pass,
    .pipe_func = VGC_function_vcl_pipe,
    .purge_func = VGC_function_vcl_purge,
    .recv_func = VGC_function_vcl_recv,
    .synth_func = VGC_function_vcl_synth,
};

systemctl reload varnishd

systemctl restart varnishd

# vim /etc/varnish/default.vcl
cat /etc/varnish/default.vcl
#
# This is an example VCL file for Varnish.
#
# It does not do anything by default, delegating control to the
# builtin VCL. The builtin VCL is called when there is no explicit
# return statement.
#
# See the VCL chapters in the Users Guide at https://www.varnish-cache.org/docs/
# and http://varnish-cache.org/trac/wiki/VCLExamples for more examples.

# Marker to tell the VCL compiler that this VCL has been adapted to the
# new 4.0 format.
vcl 4.0;

# Default backend definition. Set this to point to your content server.
backend default {
    .host = "127.0.0.1";
    .port = "8080";
}

sub vcl_recv {

}

sub vcl_backend_response {

}

sub vcl_deliver {

}

# ACL de deny
acl deny {
"10.10.0.10"/32;
"192.168.1.0"/24;
}

# Bloquer les IP de l'ACL deny
if (client.ip ~ forbidden) {
  error 403 "Acces interdit";
}

# Ne pas mettre en cache les pages login et admin
if (req.url ~ "/(login|admin)") {
  return (pass);
}

sub vcl_recv {
    unset req.http.cookie;
}

sub vcl_backend_response {
    unset beresp.http.set-cookie;
}

backend docs {
    .host = "127.0.0.1";
    .port = "8080";
}

backend blog {
    .host = "127.0.0.1";
    .port = "8081";
}

sub vcl_recv {
    if (req.http.host ~ "^doc.formatux.fr$") {
        set req.backend = nginx;
    }

    if (req.http.host ~ "^blog.formatux.fr$") {
        set req.backend = ghost;
    }
}

backend docs1 {
    .host = "10.10.11.10";
    .port = "8080";
}

backend docs2 {
    .host = "10.10.11.11";
    .port = "8080";
}

director docs_director round-robin {
    { .backend = docs1; }
    { .backend = docs2; }
}

sub vcl_recv {
    set req.backend = docs_director;
}

DAEMON_OPTS="-a :80
-T localhost:6082
-f /etc/varnish/default.vcl
-S /etc/varnish/secret
...

DAEMON_OPTS="-a :80
-T localhost:6082
-f /etc/varnish/default.vcl
-S /etc/varnish/secret
...
-s file,/var/lib/varnish/$INSTANCE/varnish_storage.bin,1G"

$ varnishadm backend.list
Backend name                   Admin      Probe
site.default                   probe      Healthy (no probe)
site.front01                   probe      Healthy 5/5
site.front02                   probe      Healthy 5/5

$ varnishadm backend.set_health site.front01 sick

$ varnishadm backend.list
Backend name                   Admin      Probe
site.default                   probe      Healthy (no probe)
site.front01                   sick       Sick 0/5
site.front02                   probe      Healthy 5/5

$ varnishadm backend.set_health site.front01 healthy

$ varnishadm backend.set_health site.front01 auto

# varnishlog -q 'TxHeader eq MISS' -q "ReqHeader ~ '^Host: formatux\.fr$'"
# varnishncsa -q "ReqHeader eq 'X-Cache: MISS'"
